PERFORMANCE DATA

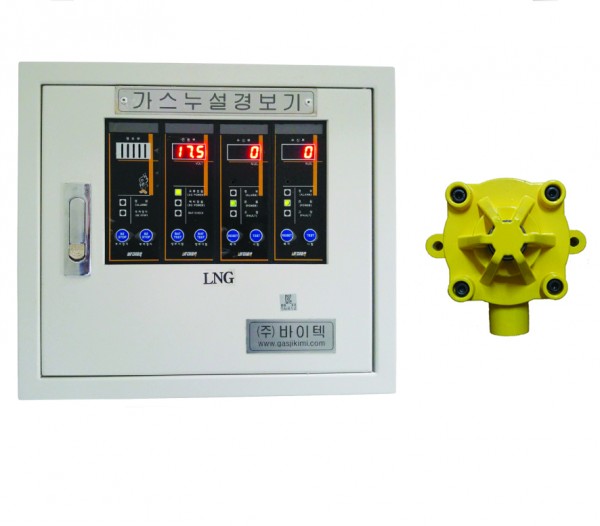

Reception Device

Type

 Discrete Type, lmmediate Alarm Type, Explosion-proog Type

 Combustible Catalytic Sensor Type

Detectable Gas

 Natural Gas, LP Propane, Butane

Measuring Range

 0 ~ 100% LEL

 Meeasuring Display

 3 Digit FND Digital Display

Alarm Setting

 15% LEL

Response Time

 within 20 Seconds of Detection

 Operating Temp & Hunid

 -20℃ ~ +40℃ / RH 95% Under

 Power Consumption

 Normal 4W + 3 (3Unit)

 Operating Voltage

 AC 220v, 50Hz / 60Hz / Battery DC 16.8V Ni-cd

 Visual Alarm

 Yellow Lamp & Buzzer

 Error Alarm

 Red Lamp & Buzzer

Alarm Signal

 Voltage signal : 12V

 Current signal : COM, NO, NC

Audible Alarm

 90 dB at 1m

Dimensions (mm)

 390(W) X 300(H) X 150(D) (3Unit)

Weight

 7.900g (3Unit)

 Application

 School, Building, Condo, Gas Recharge StationBoiler Room

 Plant, Gas Station and etc​

Detector Unit

Sensor Type

 Catalytic, Diffusion Type

Detectable Gas

 Natural Gas, LP Propane, Butane

Response Time

 Less tham 10 Secs

Explosion Proof

 Ex d llB T6

 Cable

 3Wire ( CVV & VCT 0.75sq ~ 1.25sq)

Operating Temp & Humid

 -20℃ ~ +40℃ / RH 95% Under

Dimensions (mm)

 117(W) X 102(H) X 70(D)

Weight

 608g
