PERFORMANCE DATA

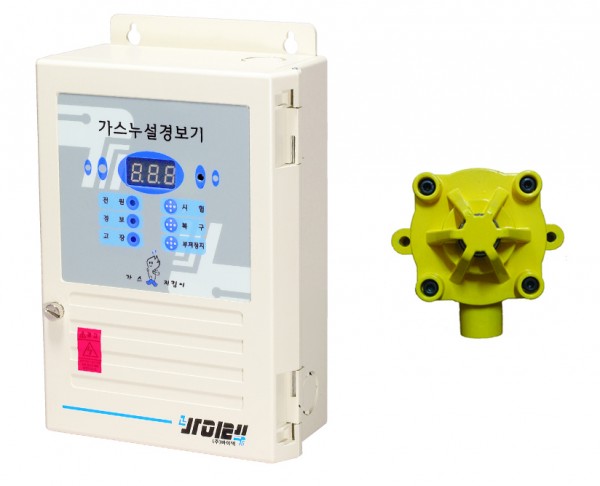

Reception Device

Type

 Discrete Type, lmmediate Alarm Type, Explosion-proog Type

 Combustible Catalytic Sensor Type

Detectable Gas

 Natural Gas, LP Propane, Butane

Measuring Range

 0 ~ 100% LEL

Alarm Setting

 20% LEL

Response Time

 within 20 Seconds of Detection

 Operating Temp & Humid

 -20℃ ~ +40℃ / RH 95% Under

 Power Consumption

 4W, Normal

Operatiog Voltage

 AC 220v, 60Hz

 Visual Alarm

 Yellow Lamp & Buzzer

 Error Alarm

 Red Lamp & Buzzer

Alarm Signal

 Voltage signal : 12V

 Current signal : COM, NO, NC (250V, 3A)

Audible Alarm

 75 dB at 1m

Dimensions (mm)

 70(W) X 100(H) X 29(D)

Weight

 63g

Detector Unit

Sensor Type

 Catalytic, Diffusion Type

Detectable Gas

 Natural Gas, LP Propane, Butane

Response Time

 < 20 Seconds

Explosion Proof

 Ex d llb T4

 Cable

 3Wire ( CVV & VCT 0.75sq ~ 1.25sq)

Operating Temp & Humid

 -20℃ ~ +40℃ / RH 95% Under

Dimensions (mm)

 128(W) X 125(H) X 90(D)

Weight

 717g
