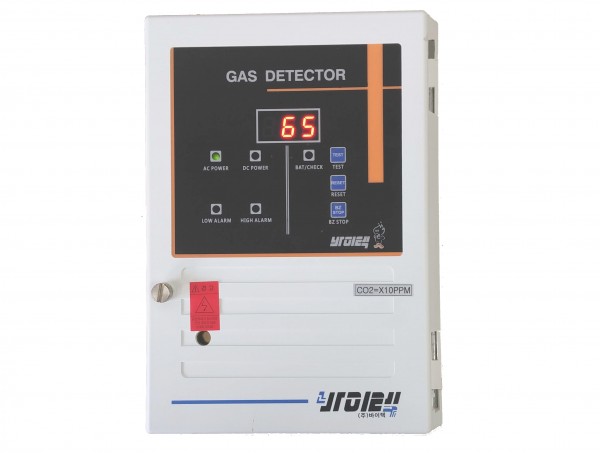

​PERFORMANCE DATA

Control Structure

 Indicator : Detector = 1:1

Extension Structure

 Wall Maunted Type

Power Supply

 AC 220V 50Hz/60Hz / DC12.0V

Concentration Display

 % LEL (Combustible Gas)

 % (Oxyen), PPM (Toxic Gas)

Visual Alarm

 Low Alarm - Low LED Lamp & Buzzer Sound

 High Alarm - High LED Lamp & Buzzer Sound

 Fault Alarm - Fault LED Lamp & Buzzer Sound

Alarm Setting

 2-Step (Low / High) - User Free Setting

Operating Temp & Humid

 -20℃ ~ +50℃ / Below 95% RH

 Input Signal

 4 ~ 20mA, DC / F.S

Output Signal

 4 ~ 20mA, DC / F.S, RS-485(Option)

Alarm Signal

 Low Alarm Relay Contact (NO, NC, COM)

 High Alam Relay Contact (NO, NC, COM)

 High Alam Voltage Signal (DC 12V)

​DIMENSION
