​PERFORMANCE DATA

Measuring Gas

 Toxic Gas & Oxygen

Measuring Type

 Diffusion Type

Measuring Method

 Electrochemical Cell

Measuring Range

 0 ~ PPM, %

Response Time

 90% of Reading in less than 15 Secs

Accuracy Time

 Within ±3% / Full Scale

Measuring Signal Output

 4 ~ 20mA. DC / Full Scale - 2.5Km Within

Operating Temp & Humid

 -20℃ ~ +50℃ / 5 ~ 95% RH (Non-Condensing)

 Signal Cable

 CVVS & CVVSB / 1.25sp X 3 Wire-Shield Type

 Operation Power

 DC 16V ~ 31V

 Conduit Pipe

 1/2" or 3/4" PF, NPT

 Mounting Type

 Wall or Pipe Station

 Certification

 Ex d llC T6-KGS

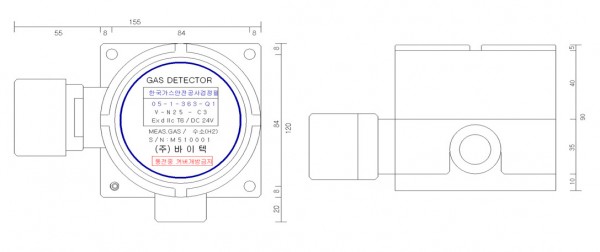

​DIMENSION
