​PERFORMANCE DATA

Measuring Gas

 Combustible Gas

Measuring Type

 Diffusion Type

Measuring Method

 Catalytic Combustion Cell

Measuring Range

 0 ~ 100 % LEL

Response Time

 90% of Reading in less than 15 Secs

Accuracy Time

 Within ±3% / Full Scale

 Meas Value Display

 LCD Display ( Built in Back Light  2 - Line, 8 Characters )

 Alarm Value Setting

 Non Intrusive Control with a Magnet  - Maintenance, Alarm Setting

Calibration Work

 Non lntrusive Control with a Magnet - Calibration

Measuring Signal Output

 4 ~ 20mA. DC / Full Scale - 2.5Km Within

Operating Temp & Humid

 -20℃ ~ +50℃ / 5 ~ 95% RH (Non-Condensing)

 Signal Cable

 CVVS & CVVSB / 1.25sp X 3Wire-Shield Type

 Operation Power

 DC 16V ~ 31V

 Conduit Pipe

 1/2" or 3/4" PF, NPT

 Mounting Type

 Wall or Pipe Station

 Certification

 Ex d llC T6-KGS

 Signal Output Option

 2 Step-Relay Contact (HIGH / LOW), RS-485

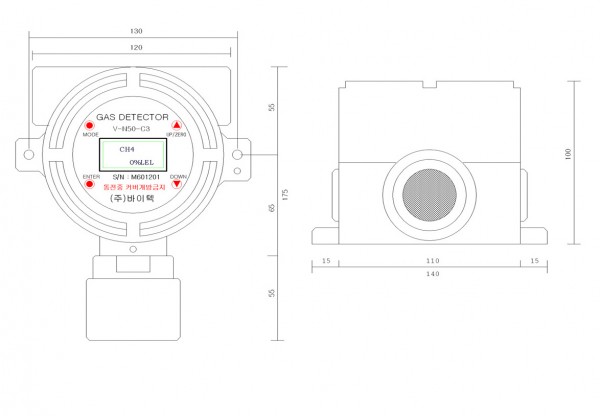

​DIMENSION
